Two-Stage Fruit Pulper and Refiner

Recover puree from prepared fruit and remove selected coarse fractions in a second screening stage. Examine the structure, selection conditions and connected equipment.

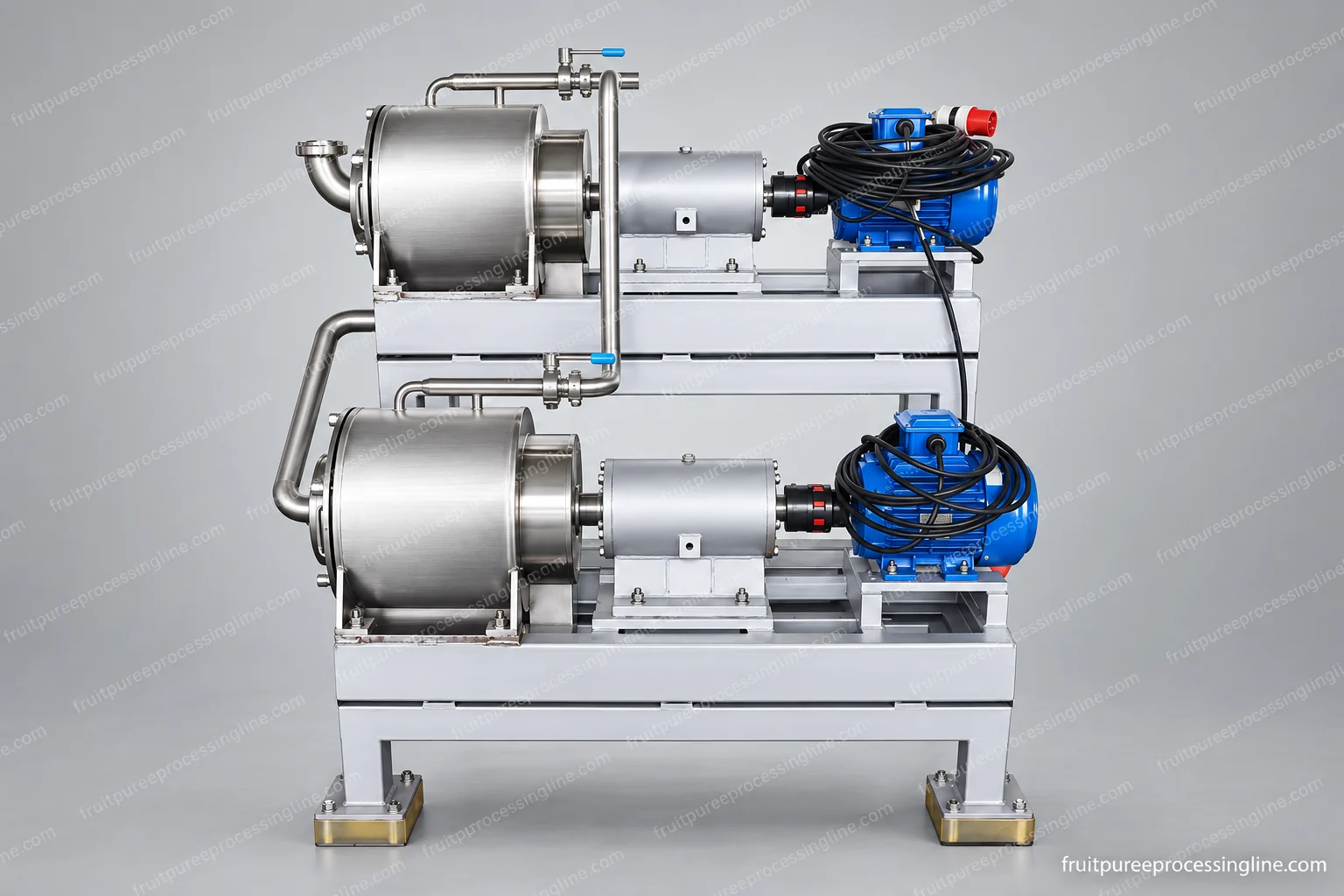

Two cylindrical pulping/refining stages with separate drives and an interstage product connection.

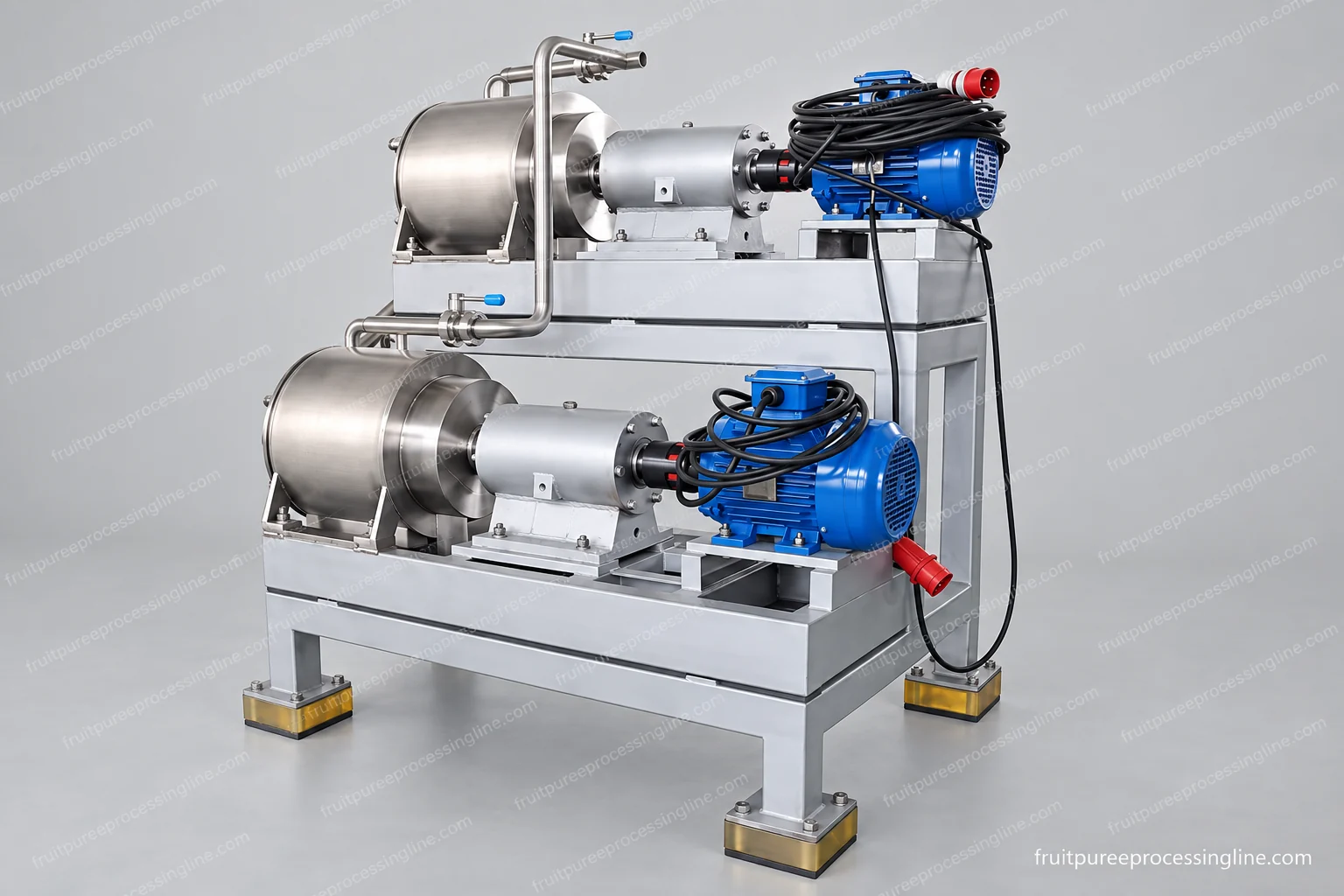

View the drive-side arrangement

Pulping and refining

What this machine does

Recover puree from prepared fruit and remove selected coarse fractions in a second screening stage.

Family: DJ-3 / DJ-5 / DJ-10 / DJ-15 / DJ-25
Published screen range: 0.4–1.5 mm family reference
Construction shown: Two driven stages with interstage transfer

Enquire about this machine

Incoming material

Prepared flesh or mash with damaging hard stones and foreign material removed.

Outgoing material

Screened puree and separate coarse rejects from the configured stages.

Inside the duty

How it works

A driven working assembly moves the feed against a perforated screen. The accepted material passes through while larger fractions leave by the reject route. A second driven stage provides a further separation duty. Both stages belong to the shown machine; they are not two unrelated products.

Choose the configuration

Selection conditions

Agree which coarse fractions should be removed and which fibre should remain. Select stage duties and screens with a representative feed and accepted product sample. More severe finishing can change both the wanted structure and the useful material recovery.

Published family reference
Series	Listed input, t/h	Listed drive, kW
DJ-3	1–3	4.0 × 2
DJ-5	5	7.5 × 2
DJ-10	10	18.5 × 2
DJ-15	15	30 + 18.5
DJ-25	25	45 + 37

The series table describes input capacity and drive configurations, not a guaranteed finished-puree rate. The pictures do not establish an individual DJ size. Screen aperture is a machine setting, not a measured Dv90 or a maximum dimension in the finished ingredient.

Connect the machine

Stabilize the prepared feed and provide distinct reject collection. The product outlet needs a receiver or transfer arrangement suited to its flow; avoid treating the screen chamber as an unlimited upstream storage volume.

Cleaning and maintenance

Provide room to remove and inspect screens and contact parts. Check damaged apertures, seals and product-retaining recesses. Reassembly and screen identification are part of a controlled product change, alongside cleaning.

Part of a complete scope

Production packages using this equipment

Whole fruit to ingredient puree

Fresh Mango Puree Production Line

A mango-based production route combining real fruit preparation, flesh recovery, two-stage pulping and the selected bulk treatment and packing equipment.

Prepared puree to a formulated or treated ingredient

Prepared Puree Mixing, Treatment and Filling System

A package for an existing puree stream: selected ingredient mixing, optional high-pressure homogenization, controlled transfer, thermal treatment and compatible bulk bag filling.
